SFP BI-DIRECTIONAL PRODUCTS
|
|
Feature

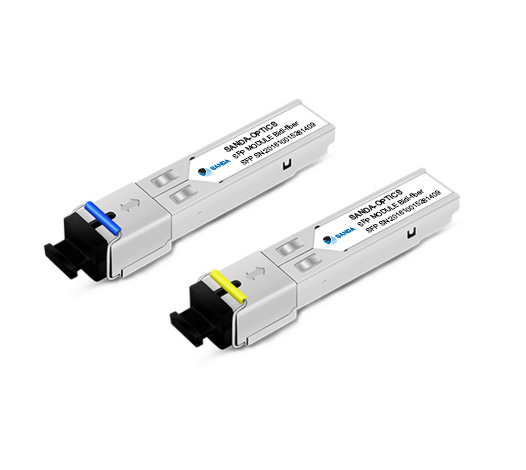

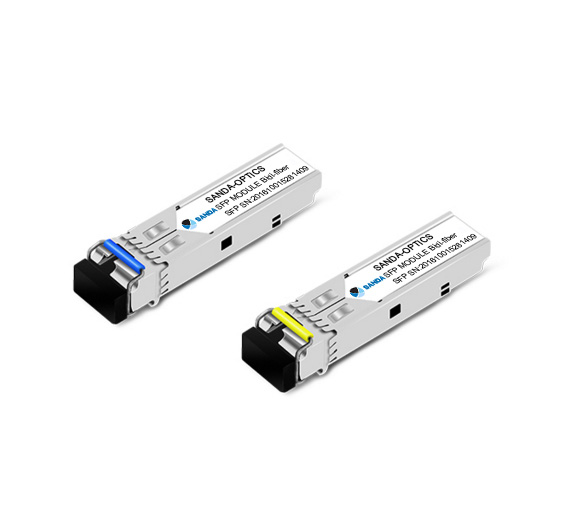

- 1-Fiber Bi-Directional SFP Optical Transceiver
- Simplex SC or LC Connector
- Up to 2.67 Gb/s bi-directional data links
- Single +3.3 V Power Supply
- 0 to 70C, -40 to 85C Case operation temperature ranges.
- Class 1 Laser International Safety Standard IEC 60825 Compliant
Application
- SDH/SONET Link
- SDH/SONET Link
- IEEE 802.3ah 1000BASE-BX Applications
- Gigabit Ethernet Interconnect
- Fibre Channel Links
Ordering information
| Part Number | Fiber Type | Data Rate | Wavelength | Optical Components | Distance | Connector | Case Temperature range | DDM |
| SD1SBD-M35FP-02 | MMF | 155Mbps | 1310nm/1550nm | FP/PIN | 2km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-M53FP-02 | MMF | 155Mbps | 1550nm/1310nm | FP/PIN | 2km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S34FP-10 | SMF | 155Mbps | 1310nm/1490nm | FP/PIN | 10km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S43FP-10 | SMF | 155Mbps | 1490nm/1310nm | FP/PIN | 10km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S35FP-15 | SMF | 155Mbps | 1310nm/1550nm | FP/PIN | 15km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S53FP-15 | SMF | 155Mbps | 1550nm/1310nm | FP/PIN | 15km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S34FP-20 | SMF | 155Mbps | 1310nm/1490nm | FP/PIN | 20km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S43FP-20 | SMF | 155Mbps | 1490nm/1310nm | FP/PIN | 20km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S35FP-40 | SMF | 155Mbps | 1310nm/1550nm | FP/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S53DP-40 | SMF | 155Mbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S34FP-40 | SMF | 155Mbps | 1310nm/1490nm | FP/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S43DP-40 | SMF | 155Mbps | 1490nm/1310nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S35DP-80 | SMF | 155Mbps | 1310nm/1550nm | DFB/PIN | 80km | LC/SC | 0~70° / -40~85° | √ |
| SD1SBD-S53DP-80 | SMF | 155Mbps | 1550nm/1310nm | DFB/PIN | 80km | LC/SC | 0~70° / -40~85° | √ |
| SD2SBD-M35FP-02 | MMF | 622Mbps | 1310nm/1550nm | FP/PIN | 2km | LC/SC | 0~70° / -40~85° | √ |
| SD2SBD-M53FP-02 | MMF | 622Mbps | 1550nm/1310nm | FP/PIN | 2km | LC/SC | 0~70° / -40~85° | √ |
| SD2SBD-S35FP-15 | SMF | 622Mbps | 1310nm/1550nm | FP/PIN | 15km | LC/SC | 0~70° / -40~85° | √ |
| SD2SBD-S53DP-15 | SMF | 622Mbps | 1550nm/1310nm | DFB/PIN | 15km | LC/SC | 0~70° / -40~85° | √ |
| SD2SBD-S35FP-40 | SMF | 622Mbps | 1310nm/1550nm | FP/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD2SBD-S53DP-40 | SMF | 622Mbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-M35DP-02 | MMF | 1.25Gbps | 1310nm/1550nm | DFB/PIN | 2km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-M53DP-02 | MMF | 1.25Gbps | 1550nm/1310nm | FP/PIN | 2km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-M35FP-00 | MMF | 1.25Gbps | 1310nm/1550nm | FP/PIN | 550M | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-M53FP-00 | MMF | 1.25Gbps | 1550nm/1310nm | FP/PIN | 550M | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S53FP-03 | SMF | 1.25Gbps | 1550nm/1310nm | FP/PIN | 3km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S35FP-03 | SMF | 1.25Gbps | 1310nm/1550nm | FP/PIN | 3km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S34FP-04 | SMF | 1.25Gbps | 1310nm/1490nm | FP/PIN | 4km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S43FP-04 | SMF | 1.25Gbps | 1490nm/1310nm | FP/PIN | 4km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S35FP-10 | SMF | 1.25Gbps | 1310nm/1550nm | FP/PIN | 4km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S53DP-10 | SMF | 1.25Gbps | 1550nm/1310nm | DFB/PIN | 10km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S34FP-10 | SMF | 1.25Gbps | 1310nm/1490nm | FP/PIN | 10km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S43DP-10 | SMF | 1.25Gbps | 1490nm/1310nm | DFB/PIN | 10km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S35FP-20 | SMF | 1.25Gbps | 1310nm/1550nm | FP/PIN | 20km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S53DP-20 | SMF | 1.25Gbps | 1550nm/1310nm | DFB/PIN | 20km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S34FP-20 | SMF | 1.25Gbps | 1310nm/1490nm | FP/PIN | 20km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S43DP-20 | SMF | 1.25Gbps | 1490nm/1310nm | DFB/PIN | 20km | LC/SC | 0~70° / -40~85° | √ |
| SSD3SBD-S35FP-40 | SMF | 1.25Gbps | 1310nm/1550nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S53DP-40 | SMF | 1.25Gbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S34DP-40 | SMF | 1.25Gbps | 1310nm/1490nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S43DP-40 | SMF | 1.25Gbps | 1490nm/1310nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S35DP-60 | SMF | 1.25Gbps | 1310nm/1550nm | DFB/PIN | 60km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S53DP-60 | SMF | 1.25Gbps | 1550nm/1310nm | DFB/PIN | 60km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S34DP-60 | SMF | 1.25Gbps | 1310nm/1490nm | DFB/PIN | 60km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S43DP-60 | SMF | 1.25Gbps | 1490nm/1310nm | DFB/PIN | 60km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S45DP-80 | SMF | 1.25Gbps | 1490nm/1550nm | DFB/PIN | 80km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S54DP-80 | SMF | 1.25Gbps | 1550nm/1490nm | DFB/PIN | 80km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S45DP-100 | SMF | 1.25Gbps | 1490nm/1550nm | DFB/PIN | 100km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S54DP-100 | SMF | 1.25Gbps | 1550nm/1490nm | DFB/PIN | 100km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S45DA-120 | SMF | 1.25Gbps | 1490nm/1550nm | DFB/APD | 120km | LC/SC | 0~70° / -40~85° | √ |
| SD3SBD-S54DA-120 | SMF | 1.25Gbps | 1550nm/1490nm | DFB/APD | 120km | LC/SC | 0~70° / -40~85° | √ |
| SD4SBD-S35DP-20 | SMF | 2.5Gbps | 1310nm/1550nm | DFB/PIN | 20km | LC/SC | 0~70° / -40~85° | √ |
| SD4SBD-S53DP-20 | SMF | 2.5Gbps | 1550nm/1310nm | DFB/PIN | 20km | LC/SC | 0~70° / -40~85° | √ |
| SD4SBD-S35DP-40 | SMF | 2.5Gbps | 1310nm/1550nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD4SBD-S53DP-40 | SMF | 2.5Gbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | 0~70° / -40~85° | √ |
| SD4SBD-S45DP-80 | SMF | 2.5Gbps | 1490nm/1550nm | DFB/PIN | 80km | LC/SC | 0~70° / -40~85° | √ |
| SD4SBD-S54DP-80 | SMF | 2.5Gbps | 1550nm/1490nm | DFB/PIN | 80km | LC/SC | 0~70° / -40~85° | √ |
